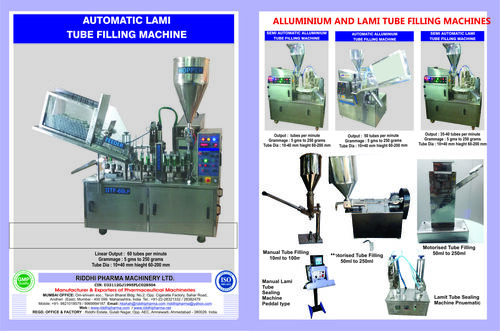

Tube Filling Machine

Tube Filling Machine
Tube Filling Machine
Send Inquiry
Product Code : 05
Brand Name : RIDDHI
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 4,50,000 INR
Product Specifications
  • Type
  • Pharmaceutical Packaging Machine
  • Material
  • LAMI AND ALLUMINIUM
  • Capacity
  • 40 - 100 TUBES PER MINUTE
  • Computerized
  • Yes
  • Control Mode
  • Semi-Automatic
  • Voltage
  • 440 VOLTS
  • Power
  • 3 PHASE
  • Weight (kg)
  • 250 Kilograms (kg)
  • Dimension(L*W*H)
  • 5 X 6 X 6 Foot (ft)
  • Color
  • STAINLESS STEEL
  • Warranty
  • ONE YEAR WARRANTY
Product Description



RIDDHI FULLY AUTOMATIC ROTARY HIGH SPEED 12STATIONS SINGLE HEAD, (SINGLE HOPPER SINGLE NOZZLE) TUBE IN FEEDER CASSETTEDEVICE ATTACHED LAMI/PLASTIC TUBE FILLING,                                        SEALINGAND CODING MACHINE





Machine:

Fully Automatic Rotary High Speed 12 Stations Single Head, (Single Hopper Single Nozzle) Tube In Feeder Cassette Device Attached Lami/Plastic Tube Filling, Sealing And Coding Machine.

Model:

 ROTAFIL-50L -   GMP MODEL

Product, To Fill & Seal:

Oentment into the Lami/Plastic Tube

Respect to tube Dia. & Hight:

Tube Diameter max. 50mm, & Tube height max. 220mm.



Filling device:

Positive suction & displacement complete SS-316. After each filling session a control on tailing is achieved by a pneumatic cut-off system, along with filters, that cleans the nozzle of the excess sample.



Syringe Pump Insert for Filling:

(5 Gms. to 30 Gms.) or (30 Gms.to 100 Gms.) or (100 Gms. to 250 Gms.) Any one of the three sets will be provided against requested specification in your order.

TECHNICAL SPECIFICATION

01.

Filling Capacity:

Machine is suitable for 5 gms to 250 gms with inter changeable Syringe pump.

02

Product , Contact Part:

S.S-316.

03.

Hopper:

Hopper of 45 Kg capacity(Working Volume 40 Kg).

04.

Filling Volume setting:

Cam for Valve operation as well Fine Tuning adjustable Control System.

05.

No tube - No Fill Device:

Activate Sensor with Electrical Logic Control system.

06.

Filling Accuracy:

± 1%.

07.

Output per Minute:

Up to 50 Tubes/ Min. In Single Hopper Two Nozzle (depending on the Fill sizes).

08.

Indexing Device of Turret:

Geneva Mechanism CNC Make.

09.

Empty Tube in feeder:

 Auto Cassette Device System with One Tube Size will be provided.



10.



Change Part :

Syringe Pump Housing of 30gms to 100 gms, Two Cassettes , Tilting Cam, Feeding Con, Holder, Filling Nozzle, and Heating Adopter, of Removable type suitable for any one-size of tubes. With basic machine. will be provided

Trade Information
  • Supply Ability
  • 2 Per Month
  • Delivery Time
  • 1 Months
  • Main Domestic Market
  • All India
