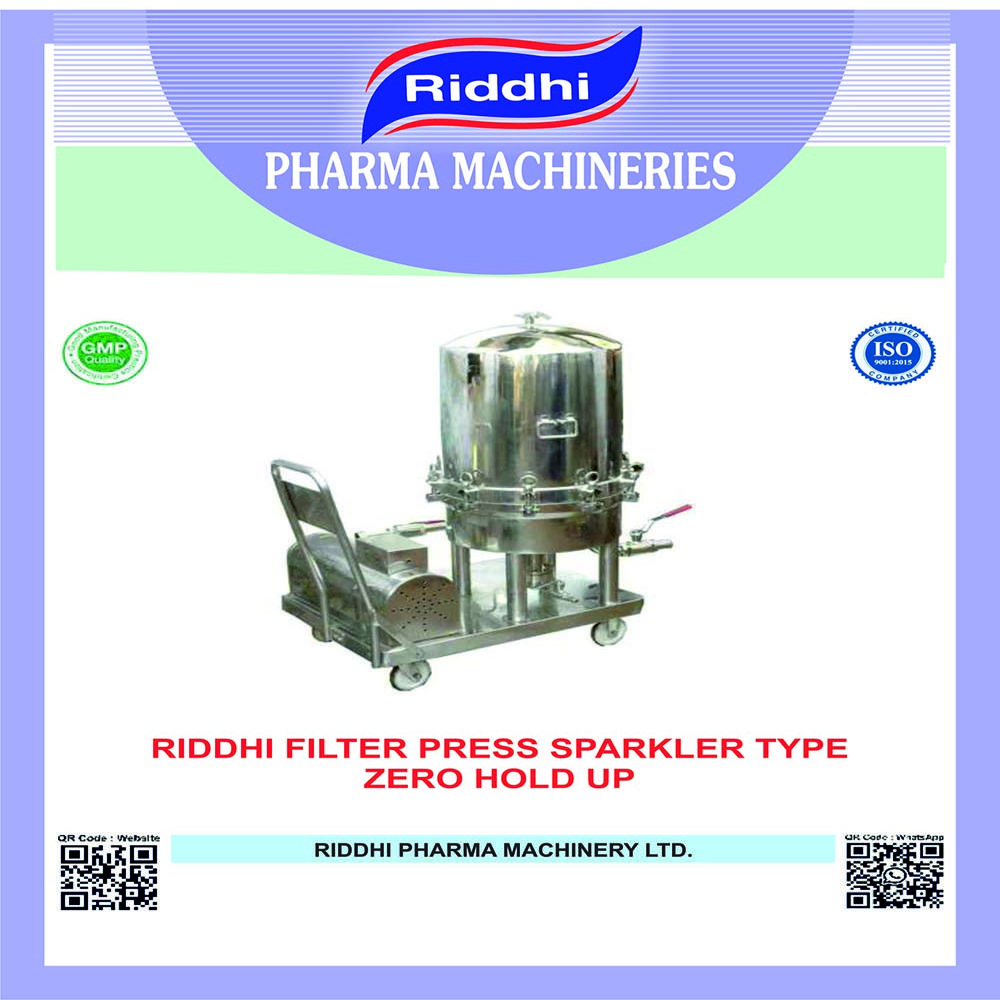

FILTER PRESS

4.0     TECHNICAL   DATA

Model No.:

24 x 12 Nos. Plates

DESCRIPTION

Filter

SERVICE

Filtration

TYPE

ZERO HOLD UP

QUANTITY

1

CAPACITY : Wet Cake Holding Ltrs.

115

                   : Output Ltrs./Hr.

7000

SIZE

24 x 12 Nos. Plates

PRESSURE ; Kg/cm2(g) INT

3 Kg / cm2 (g)

                                        - EXT

3 Kg / cm2 (g)

TEMPERATURE  ; oC   MIN

130C

                                        MAX

150C

MOC filter / jacket

PP Type / SS 304

MOC of Contact Parts

S.S. 316

JACKET Type

Jacketed (LP Steam @ 3 Kg/cm2)

AGITATOR / RPM

Not applicable

MECHANICAL SEAL

Required for the pump

NO.  OF  NOZZLES

Top Vent , Bottom Inlet & Outlet

POWER

Pump 5 HP / 3 Phase AC Supply

EMPTY WEIGHT

760 Kgs. Approx. Net

WATER FILLED WEIGHT

875 Kgs. Approx.

PUMP CAPACITY

Size : 1.1/2 & 40 Litres Head

MOTOR                            KW

3.75 kW

MAKE

Crompton Greaves / Hindustan

DIMENSIONS

990 (L) x 1500(D) x 1100(H) in mm. Approx.
