Product Details:

  • Type Tablet Pressing Machine
  • Computerized No
  • Control Mode Automatic
  • Warranty 1 Year
  • Click to View more
X

MINI TABLET PRESS MACHINE Price And Quantity

  • 1 Unit

MINI TABLET PRESS MACHINE Product Specifications

  • Tablet Pressing Machine
  • 1 Year
  • No
  • Automatic

MINI TABLET PRESS MACHINE Trade Information

  • 15 Days

Product Description

DESCRIPTION

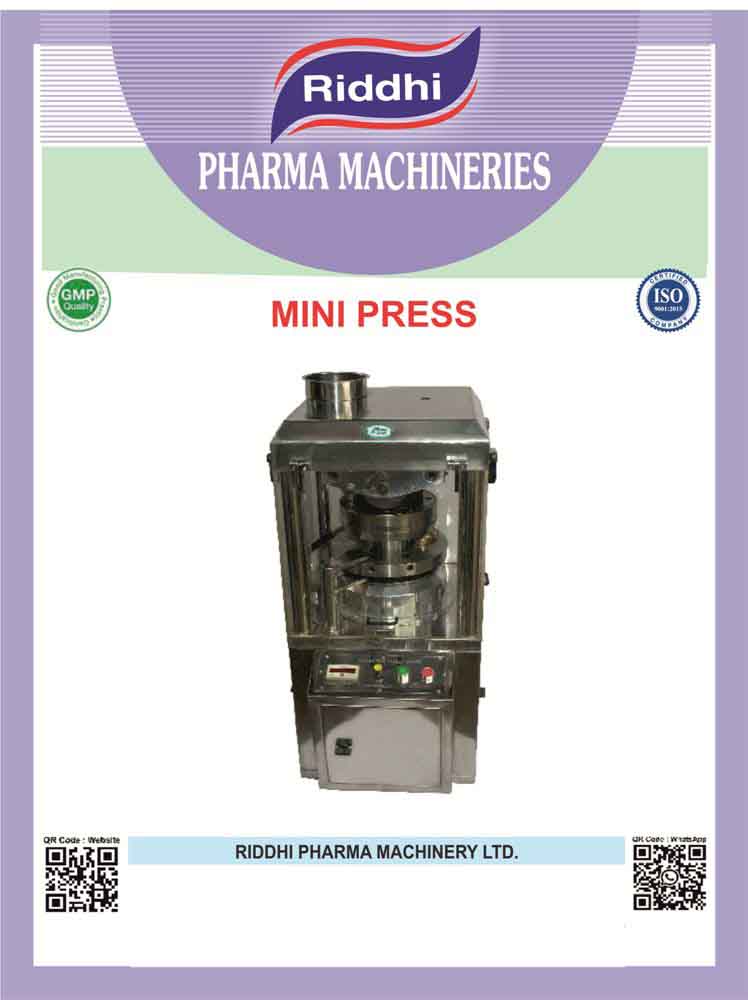

This rotary tablet press is built as per the GMP directives with total robust construction. At the same time, the necessary care has been taken to have trouble free operation, easy to clean and very low noise level. This stat-of-the-art equipment can also be used for small batch production, thanks to its b tooling specifications like 6 tons pressure, maximum tablet diameter 16mm etc. which can be utilized for achieving the better output in its range.

The maximum/minimum speed of the turret is achieved with the AC variable drive. Also the turret is equipped with key ways in upper guides asa standard features. This small wonder is totally mobile and can be placed easily on table for laboratory use. As an additional precaution lower punch is equipped with seal. A fixed feed frame ensures easy settings and lowest wastage of material.

SALIENT FEATURES

  • Easy Movability
  • Easy to operate & clean
  • Hard Heat treated rollers
  • AC drive with fixed pulley
  • Turret with key ways in upper guides
  • Turret can be provided with S.S. 316 Middle Plate (Optional)
  • Open fixed feed frame
  • Drive from centre pillar by worm reduction gear box
  • Fabricate droller carriers
  • Turretfitted thrust bearing
  • One piece upper cam track

TECHNICALSPECIFICATIONS

Model No.

RDD3   8

Type of Tooling

 D Tooling

No. of Stations

8

Max.Tablet Diameter

20mm

Maximum Depth of Fill

17mm

Turret  RPM

10to 30 Adjustable through AC Drive

Out put

14,400Tabs Hr

Max. Comp. Pressure

2Tons

Main Motor

 1.5 HP 960 RPM 3 Ph Supply
