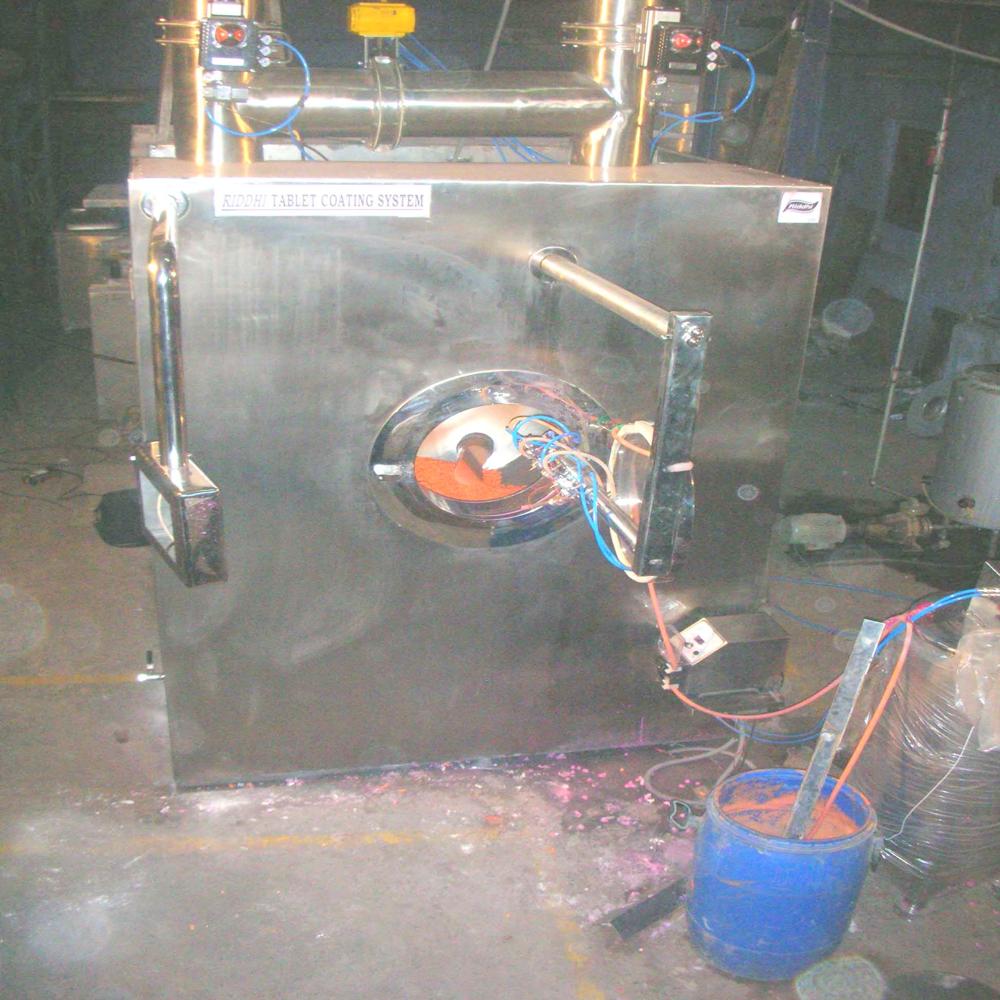

Tablet Coating System

Product Description

Technical Details 2. T E C H N I C A L   S P E C I F I C A T I O N S :

Processing Unit :

2 Bar construction vertical, cubical in configuration, all process contact parts are made of Stainless Steel of 316 grade.

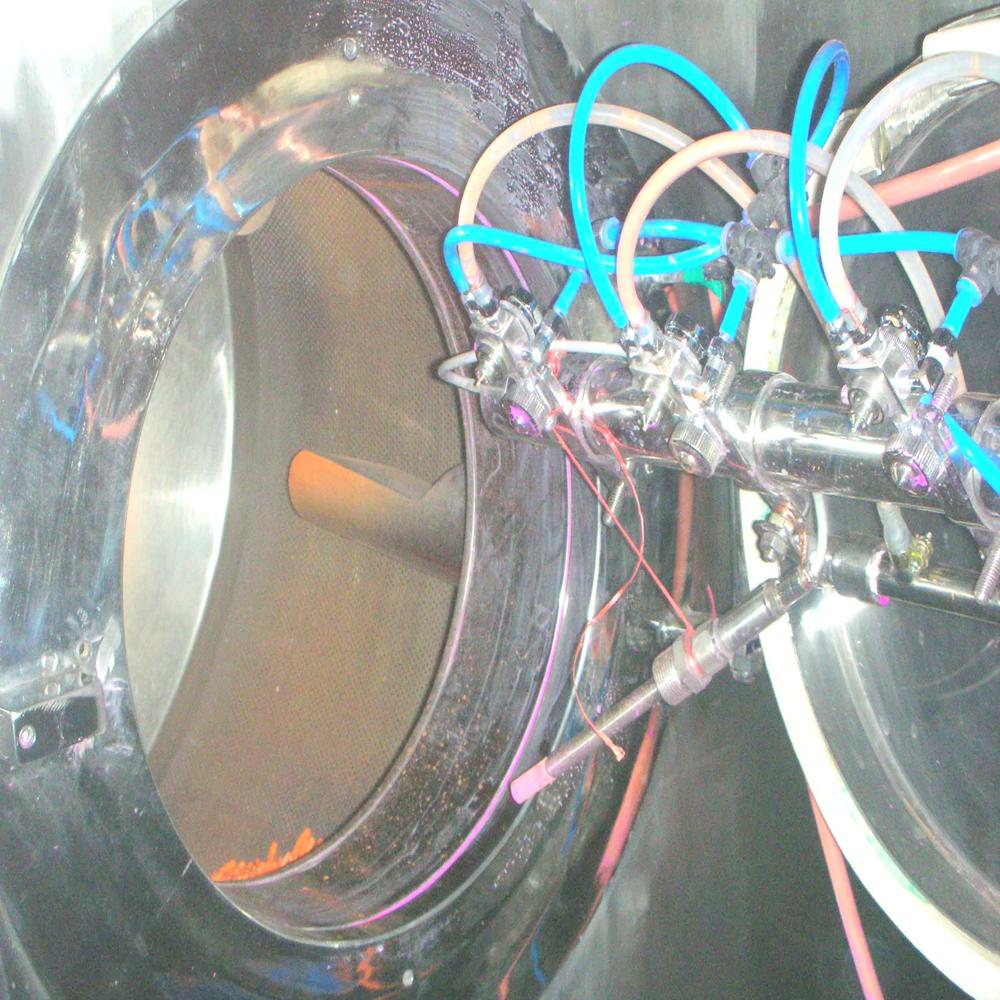

Coating Pan :

Pan Diameter 14 / 355 mm & Interchangeable Type.

Pan Mouth Diameter 175 mm

Pan Speed 2-32 RPM (Variable through VFD)

Total Working Capacity Upto 2 Kgs.

(Rated with tablet density of 0.97 g/cc at brim volume)

Main Drive Motor 0.5 HP / 415 V / 50 Hz., 3 Phase FLP Type.

Heater :

Heater Type Electric Heaters MOC : S.S.304 of 1 k.W. each

and 12 Nos.

Heating Capacity / Temperature Range 30C to 80C

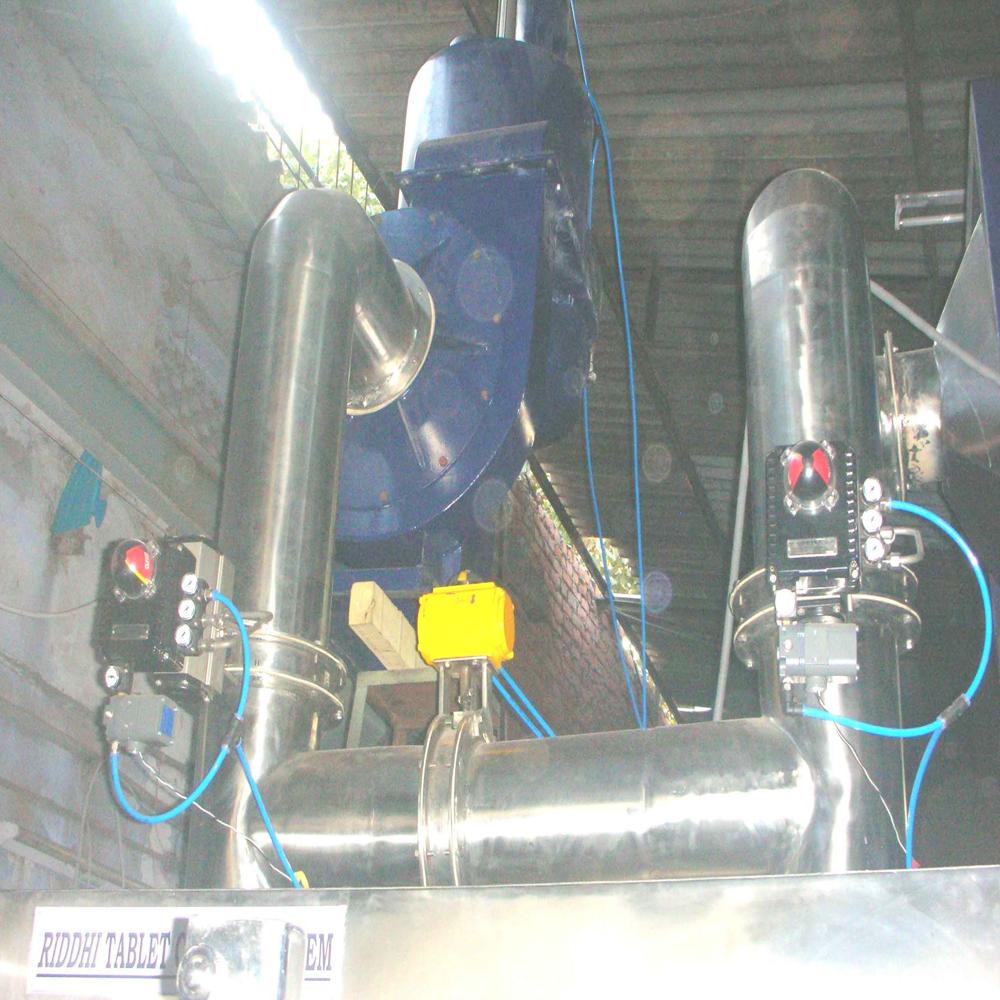

Blowers :

Hot Air Blower Capacity 200 CFM (ambient temperature)

Exhaust Blower Capacity 300 CFM (ambient temperature)

Blower Type Centrifugal, Backward curved blades.

Hot Air Inlet Blower Motor 1 HP / 415 V / 50 Hz., 3 Phase Non-FLP Type.

Exhaust Blower Motor 1.5HP / 415 V / 50 Hz., 3 Phase Non-FLP Type.

Motor Make (Non Flameproof) Hindustan / Equivalent.

Air Filters :

Pre-Filter 20 Micron

Fine-Filter 5 Micron

Hepa-Filter 0.3 Micron

Utility Requirement :

Electrical Supply 415V, 3, 50 Hz, AC Supply

Compressed Air 4-6 Bar (Free from Water, Oil & particles)

Total Electric Load Approx. 20 k.W.
