SR NO.

TECHNICAL SPECIFICATION

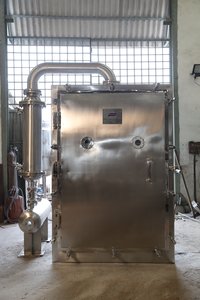

VTD 48

01)

MAIN CHAMBER OVERALL SIZE

1350 MM W X 2150 MM H X 1000 MM D

02)

CHAMBER

6 MM THK SS 316 Q FULLY WELDED REINFORCED WITH SS 304 Q 50 MM X50 MM SQUARE BAR & 50 X 100 MM M.S CHANEL SUPPORT (STIFFNER) ALL AROUND THE BODY.(OUTSIDE) CHAMBER MOUNTING ON 250X125MM I BEAM 02NOS LEG.

03)

HEATING SHELVES

FULLY WELDED HOLLOW PADS IN SS 316 Q WITH 4 MM TOP & 3 MM BOTTOM WITH INSIDE 20 X 20MM SS 304 SQ.BAR ZIGZAG WELDING FOR HOT WATER CIRULATION.

04)

SHELVE SIZES

1650 MM D X 830 MM W X 28 MM

05)

NO. OF SHELVES & HEAT TRASFER AREA OF HEATING SHELVES

16 + 01 NO dummy shelves. (TOTAL HTA HEATING SHELVES = 46.75M)

06)

OUTSIDE INSULATION

SS 304 14 SWG THK SHEET COVERING

07)

SKIRTING

SS 304 5MM THK PLATE X250MM W.

08)

VACUUM PIPING

SS 316

09)

FINISH INTERNAL

ALL INTERNAL GRIT 240 MIRROR FINISH

10)

FINISH EXTERNAL

 180 GRIT DULL FINISHING FROM ALL OVER OUTSIDE.

11)

TEMP & VACUUM GAUGE

REPUTED MAKE SS DIAL TYPE VACUUM GAUGE  01NOS AND TEMP.GAUGE 02NOS.

12)

GASKET

SILICON ( FOOD GRADE ) SIZE-16X16MM

13)

DOOR

SS 316 8 MM THK. PLATE REINFORCED WITH 50 X 50 MM SS 304 SQUARE BAR.WITH 2NOS 150NB VIEW GLASS & THE INSIDE SURFACE OF THE DOOR FLANGE IN GROOVED TO ACCOMMODATE OF SILICON GASKET OUT SIDE 3 MM THK SS 304 SHEET FOR INSULATION COVERING.

14)

DOOR HINGES

SS 304 HEAVY DUTY HINGES 02 NOS.

15)

LOCKING ARRANGEMENT

SS 304 SQUARE THRADE WITH ROUND PIPE TYPE NUT.

16)

C.C. DISTANCE BETWEEN SHELVES

110 MM MINIMUM

17)

ANNULAR SPACE BETWEEN SHELVES

80 MM

18)

HOT WATER HEADER SUPPLY

SS 304 SCH 40 PIPE(FITTED AT OUTSIDE OF DRYER)

19)

OPERATING TEMPERATURE

90  DEG C

20)

DESIGN TEMPERATURE

110 DEG C

21)

VACCUM DROP

50 MM / 24 HRS.

22)

DESIGN PRESSURE

FULL VACUUM

23)

FLANGE CONNECTION

ALL NOZZALE AS PER ASA150 RAISED FACE HOT WATER INLET/OUTLET 25NB, VACUUM VENT 150NB, N2 PURGING 15NB, VIEW GLASS 150NB, TEMP SENSOR ETC 15NB.

24)

VACCUM GAUGE / MAKE

*MICRO* MAKE

25)

VACUUM BRAKING

SS 316 NEEDLE VALVE TYPE

26)

CONDENSER H.T AREA

4 M 2
