Product Video

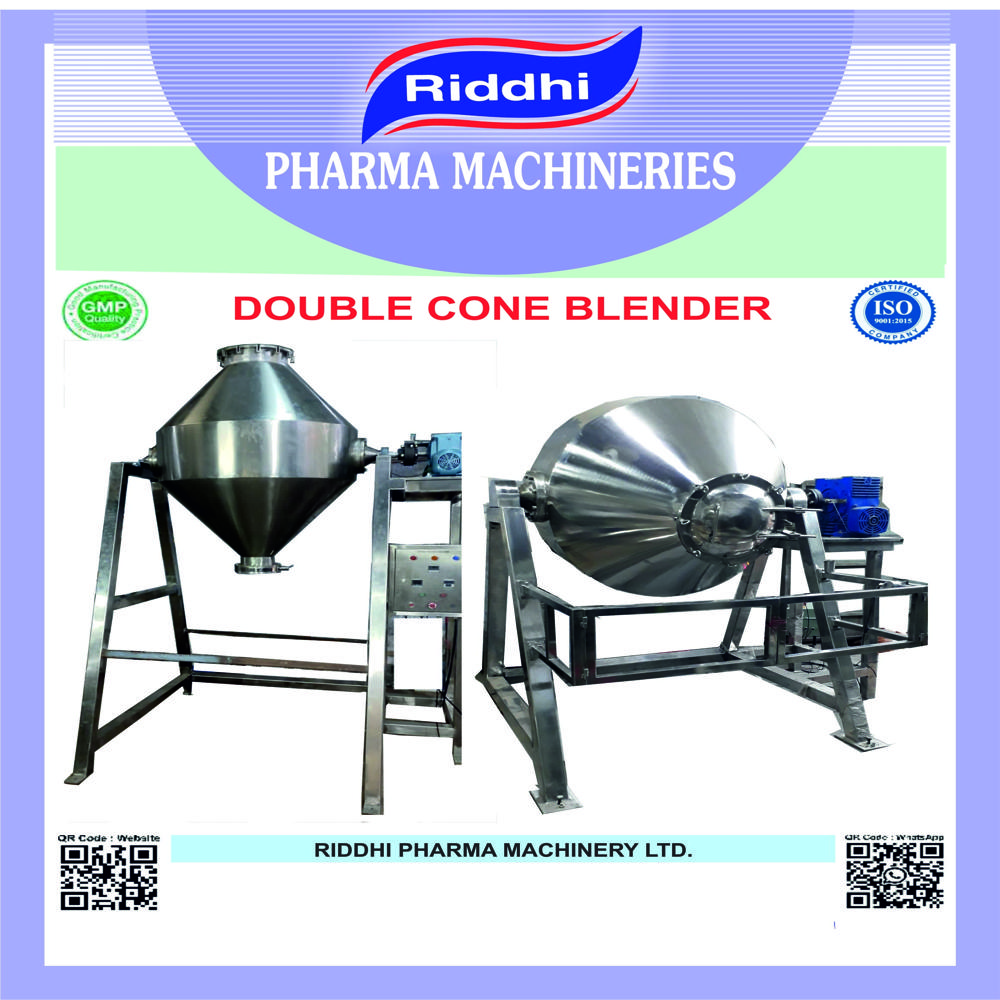

Double Cone Blender

350000 INR/Unit

Get a Price/Quote

Product Details:

Type Other
Material granules and powder
Capacity 5 litres to 5000 litres Kg/hr
Computerized Yes
Control Mode Automatic
Voltage 440 VOLTS Milliampere (mA)
Power 3 PHASE Milliampere (mA)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Double Cone Blender Price And Quantity

Minimum Order Quantity 3 Unit
Price 350000 INR/Unit

Double Cone Blender Product Specifications

Type Other
Voltage 440 VOLTS Milliampere (mA)
Capacity 5 litres to 5000 litres Kg/hr
Warranty one year warranty
Power 3 PHASE Milliampere (mA)
Dimension (L*W*H) 6 x6 x8 Foot (ft)
Control Mode Automatic
Material granules and powder
Color STAINLESS STEEL
Computerized Yes
Weight (kg) 350 Kilograms (kg)

Double Cone Blender Trade Information

FOB Port FOB MUMAI JNPT PORT
Supply Ability 4 Unit Per Month
Delivery Time 6-8 Week
Packaging Details sea worthy packing
Main Domestic Market All India

Product Description

Octagonal Blenders, due to its octagonal shape is designed to process to larger volume of material. it occupies less space compared to other similar blenders like 'V' and Double Cone. Power consumption is also less, The blending takes place at low speed during operation. It is well balanced even in higher capacities.

APPLICATION

Dry powder mixing for tablets and capsules formulations.
Dry granules sub lots mixing to increase the batch size at bulk lubrication stage of tablet Granules

SALIENT FEATURES:

Contact parts in stainless steel 304 or 316
Octagonal shaped with rectangular center, conical discharge frustum and rectangular top frustum
Dry powder mixing for tablets and capsules formulations.
Baffles provided in the shell
Manhole with gasket is provided to fix baffles and for ease of cleaning the shell
Charging and discharging is through a butterfly valve. A conical adaptor can be provided for fixing charging drum after butterfly valve
Unit can be provided with bin charging arrangement
All moving parts are enclosed in guards
A safety railing with a limit switch is provided for operator safety
Manual Inching arrangement can be provided
Flame - proof motors with flame - proof push button stations can be provided

MODEL	GROSS VOL. litres	WRKG. VOL. litres	MOTOR hp rpm	OUTPUT SPEED inch.	DISCH. VALVE
RDOB 5	12	10	0.5	12	4"
RDOB 10	25	20	0.5	12	4"
RDOB 25	50	40	0.5	12	4"
RDOB 50	125	100	0.5	8	6"
RDOB 100	250	200	1	8	6"
RDOB 150	375	300	1	5/10	6"
RDOB 200	500	400	1.5	5/10	6"
RDOB 250	625	500	2	5/10	8
RDOB 500	1250	1000	3	5/10	10
RDOB 1000	2500	2000	5	5/10	12

Technical Details
