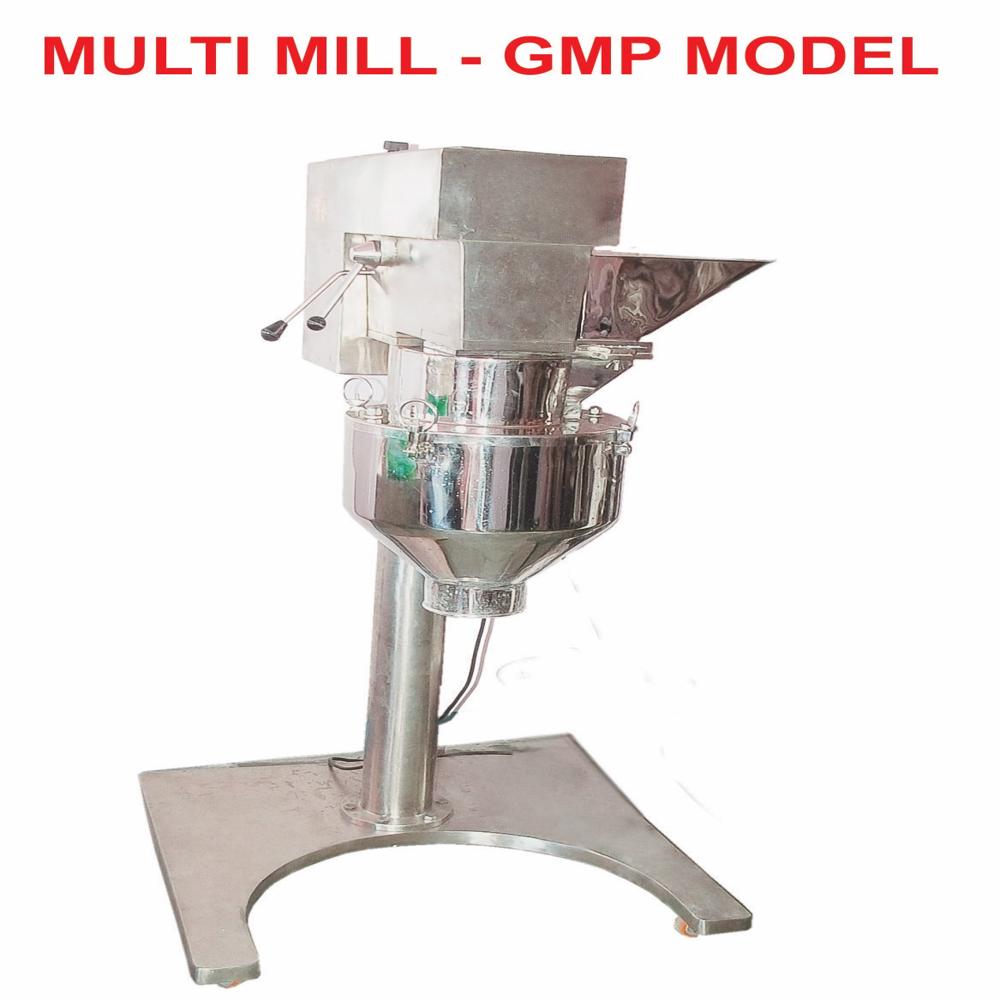

Multi Mill GMP Model

Product Description

APPLICATIONS :

Multi Mill is widely used for wet and dry granulation, pulverization etc. in Pharmaceuticals, Chemicals, Cosmetics, Ceramics, Colours, Dyestuff, Food Products etc. It also finds application in Pesticides, Fertilizers, Spices, Detergents, Insecticides, Plastic and Resins Industries.

OPERATION :

It operates on the principle of variable force swing beaters having both knife and impact edges rotating within a selected screen to get the required size reduction. Material fed in the hopper, goes down to the processing chamber where it moves to the periphery and passes through the screen radially and tangentially. Finally the processed material gets collected in the container kept below the processing chamber. Output and quality of the final product depends on three main factors :

1. Shape of beaters (knife / impact).

2. Speed

3. Screen Size.

DESCRIPTION :

Unit consists of SS 316 quality product contact parts like hopper, processing chamber with beater assembly, screen and scavenger plate. Whereas product non contact parts are either made or else covered or cladded with SS 304 quality sheet metal.

Unit also consists of electric motor, reversible switch, DOL starter, four speed step pulley. Suitable screen with SS 304 Cladded pipe / pillar mounted on base plate, with castors.

SALIENT FEATURES :

Direction of beaters can be changed by reversible switch from knife to impact forward and vice-versa. All contact parts can be easily and quickly dismantled and cleaned. Machine is designed for continuous operation. Cylindrical screen for higher output. Castors wheels are provided for mobility.
