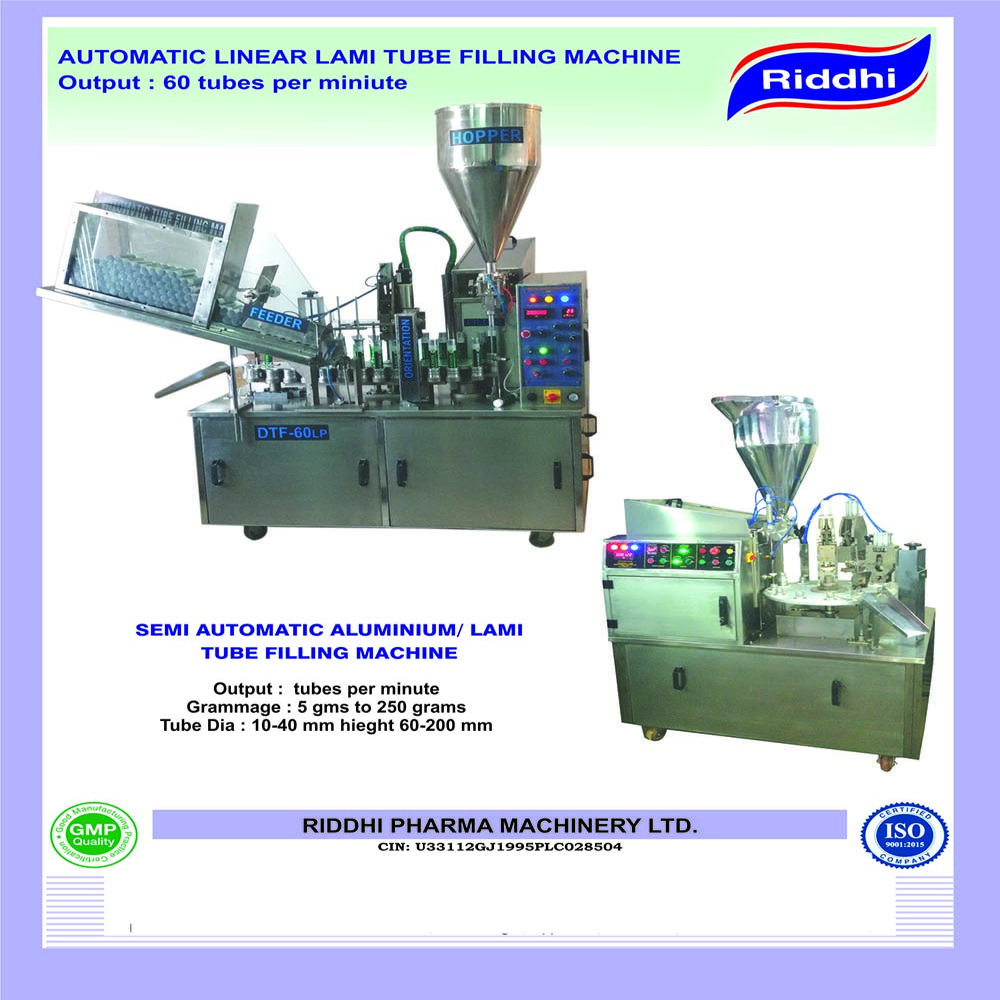

Semi Automatic Aluminium Tube Filling Machine
375000.0 INR/Piece
Product Details:
- Usage & Applications Industrial
- Type Other
- Material Stainless Steel
- Computerized No
- Control Mode Semi-Automatic
- Voltage 210-440 Volt (v)
- Color Gray
- Click to View more
X
Semi Automatic Aluminium Tube Filling Machine Price And Quantity
- 375000.0 INR/Piece
- 1 Piece
Semi Automatic Aluminium Tube Filling Machine Product Specifications
- Stainless Steel
- No
- 210-440 Volt (v)
- Industrial
- Gray
- Other
- 1 Year
- Semi-Automatic
Semi Automatic Aluminium Tube Filling Machine Trade Information
- FOB Mumbai
- Telegraphic Transfer (T/T)
- 1 Piece Per Week
- 8 Week
- No
- Asia, North America, South America, Middle East, Central America, Africa
- All India
Product Description
System Description:The empty tubes, which are first loaded in the cassette, are feed into the tube holders by a titter. Next the tubes are orientation station for positioning the "I" mark subsequently; the tube passes through the filling station,
* No changeover parts are required while, selecting the option between Aluminum to Lami/Plastic Tubes and vice versa. The control panel has controls for the same.
On Selecting In The Lami/Plastic Tube Mode :
After filling the tube travels to the heating station where hot air is blown onto the inside end of the tube by a nozzle. In the mean time, after each filling session a control on tailing is achieved by a pneumatic cut-off system, along with filters, that cleans the nozzle of the excess sample. Next, when the tube is lifted for heating, a cooling ring centers the tube so that heating is uniform around the tube, as also to ensure that the outside portion of the tube is not heated. While heating, the hot air is simultaneously sucked out of the tube so that the product is not affected. The tube then goes to the sealing & coding station where the tube is pressed & sealed and then coded with metal stereos (female). it then travels to the trimming station where the irregular shape at the tube end is trimmed by a set of blades. It is then ejected at the next collection station.
On Selecting The Aluminum Tube Mode :
After filling the tube travels to the 1st Folding station. In the mean time, after each filling session a control on tailing is achieved by a pneumatic cut-off system, along with filters, that cleans the nozzle of the excess sample. The tube then goes to the 2nd Folding station. It then travels to the Crimping & Batch coding station where the tube is pressed & sealed then coded with metal stereos(male). It is then ejected at the next collection station. the tube holders by a tilter. Next the tubes are orientation stati.
Standard Feature With Machine:
- Manual tube infeed.
- Automatic tube orientation (option).
- Tail-free filling system.
- Smooth operation by using Ferguson Drive.
- Automatic coading on the tubes.
- Machine cladded with SS 304.
- Inbuilt centralised lubrication (option).
- No tube, No fill device
- Automatic tube infeed cassette system
- Automatic tube cleaning system.
- Both side batch coating system.
- Cap tightening system.
- Tubular cover Aluminium or SS 304 with
Acrylic or Polycarbonate housing. - Jacketed Hopper with Product Stirring Device.
- Electronic product counter & time totaliser.
- Reverse / Saddle folding on Aluminium.
- Flame proofing.
- Multicolour filling system.
- Designer sealing patterns.
- GMP Version.
- PLC based machine operations.
- Before and after filling nitrogen pursing.
- Mechanical tail-free attach filling device
- Option 1 : Metal folding and Crimping station.
- Option 2 : Lamisealer for laminated or plastic tubes.
- Option 3 : A combination sealer for both metal tube folding, laminated and plastic tube sealing
- The proposed High Speed 12 Stations compact rotary Fully Automatic Lami/Plastic Tube Filling machine. Contact Part -SS-316. Model - GMP Capable to fills from 40-300ml
- SS-316 Syringe Pump Housing and Rotary Piston Filling Device. With Blow off Device Pneumatic Tail Cut-off System.
