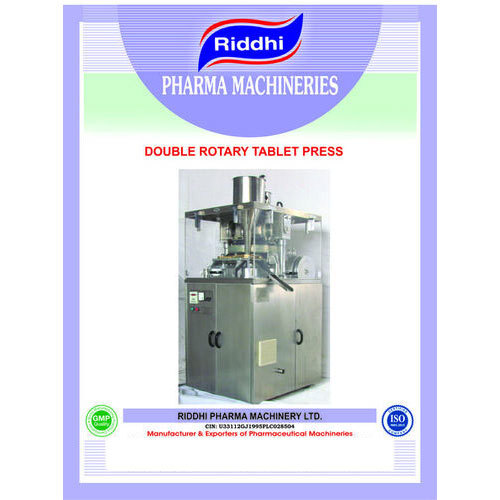

DOUBLE ROTARY TABLET PRESS DOUBLE LAYER ATTACHMENT
Redesigned variable speed pulley.
Separate centre pillar of C.I. graded casting.
Turret of C.I. special grade casting.
Very rigid Gun metal Feed frame (both identical) with sufficient height to avoid spill over powder.
All columns, nuts and hand wheel rim are electroplated.
Central oil lubrication system with hand pump.
Turret rotates on needle roller thrust bearing which is immersed in oil for frictionless rotation.
Pressure gauge provided to check compression load.
Separate, front and rear take off chutes to avoid any blockage or double Compression resulting in accident.
Excellent finish, accessibility for ease of cleaning, operation and Maintenance.
Oil groove on top face of turret for collection of excess oil.
Machine can be equipped to compress two layer tablets.
Optional equipment like Dust Extractor unit and De-dusting & De- burring unit can be attached with machine other than electrical supply.
We have developed a 3 piece turret to avoid cracking between the die holes especially for 33,35, 41 and 45 station machine.
Machine is totally enclosed i.e. Top half of the machine (compression zone) with S.S hood & acrylic covers and lower half of the machine Complete with matt finished S.S. covers. This reduces the noise level and prevents to and from flow of dust between compression zone and Compression room.
Anti Vibration pads provided, hence no foundation required.
