DOUBLE LAYER TABLET PRESS

DOUBLE LAYER TABLET PRESS

750000 INR

Product Details:

  • Type Tablet Pressing Machine
  • Material stainless steel
  • Capacity 20 to 4500 tablet per minute Kg/hr
  • Computerized Yes
  • Control Mode Automatic
  • Voltage 440 volts Milliampere (mA)
  • Power 3 phase Milliampere (mA)
  • Click to view more
X

Price And Quantity

  • 3 Unit
  • 750000 INR

Product Specifications

  • 4 x 4 x6 Inch (in)
  • 2 tons Kilograms (kg)
  • 440 volts Milliampere (mA)
  • 20 to 4500 tablet per minute Kg/hr
  • 3 phase Milliampere (mA)
  • stainless steel
  • one year warranty
  • Automatic
  • stainless steel
  • Tablet Pressing Machine
  • Yes

Trade Information

  • MUMBAI JNPT PORT
  • Telegraphic Transfer (T/T), Letter of Credit at Sight (Sight L/C), Letter of Credit (L/C), Cash in Advance (CID), Cash Advance (CA)
  • 6-8 weeks Week
  • sea worthy packing
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • All India

Product Description

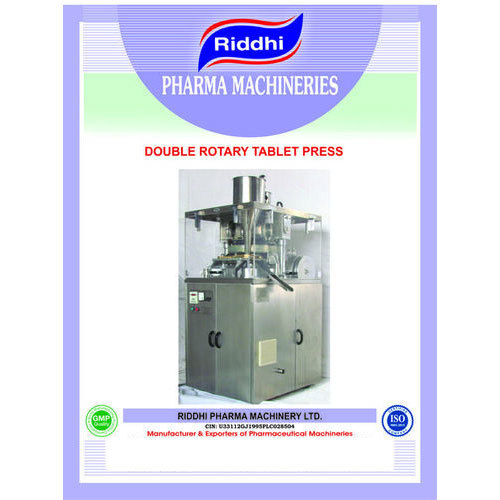

Tablet Compression Machine - Double Rotary Tablet Press - RMB4

Application :
  • Square GMP Model.
  • C.I. Body and C.I. Middle plate
  • Paint free tablet manufacturing zone.
  • Turret of S.G. Iron Special Grade Casting
  • Separate centre pillar of C.I. graded casting.
  • Disc type friction clutch start system.
  • Upper Punch Penetration system
  • Electronic Digital Tablet cum RPM Counter.
  • Inter lock switches to all Guards.
  • Double Sided lifting cams.
  • Lower Guard of Stainless Steel & Upper Guards of Acrylic Material.
  • Aluminum Turret Guards. 13. Effective Dust Extraction Nozzles.
  • Imported needle roller bearing provided at the bottom of turret.
  • Re-designed Variable Speed Pulley, One shot Lubrication System and Anti Vibrating Mounts are provided.
  • Very rigid Gun metal Feed frame (both identical) with sufficient height to avoid spill over of powder
  • Turret with key slots, essential for shaped tooling provided on 27, 33, 35 & 37 station machine (optional on 41 & 45 station machine.)
  • Separate, front and rear take off chutes to avoid any blockage or double compression resulting in accident.
  • Oil groove on top face of turret for collection of excess oil.
Special Additional Features
  • S.S. Turret Die / Middle Plate.
  • A.C. Frequency Drive for Main Motor.
  • Square GMP Model with S.S. Lower Half Enclosures.
  • Safety Switches at Acrylic Guards.
  • Automatic Centralised Lubrication System.
  • Upper Punch Penetration.

Technical Specification
Models RDB4-27D RDB4-27 RDB4-35 RDB4-45
No . Of Stations 27 27 35 45
Type of Tooling D B B BB
Output Tab./Min. 900-2268 900-2268 1167-2940 1500-3781
Max.Op. Pressure 100 kN 65 kN 65 kN 65 kN
Max. Tab. Dia. 25 mm 16 mm 16 mm 11.1 mm
Max. Dpt. of Fill 20 mm 17.5 mm 17.5 mm 17.5 mm
Upper Punch Pen 1.5-8 mm 1.5-8 mm 1.5-8 mm 1.5-8 mm
Max. Turret RPM 40 RPM 40 RPM 40 RPM 40 RPM
Main Motor 4 / 5 HP, 1440 RPM, 3 Ph. A.C. Supply
Overall Dmns. 1040 x 1000 x 1790H (mm) Approx.
Net Weight 1150 Kgs. Approx.

RIDDHI PHARMA MACHINERY LTD
